Humanoid robots

The humanoid robot has 1.7M and 2.3M versions is the smart humanoid robots are built with lightweight joint actuators and smart bionic hands independently developed by Avatar, the intelligent humanoid robot weighing only 48 kg, far lower than the industry average of 60~70 kg.

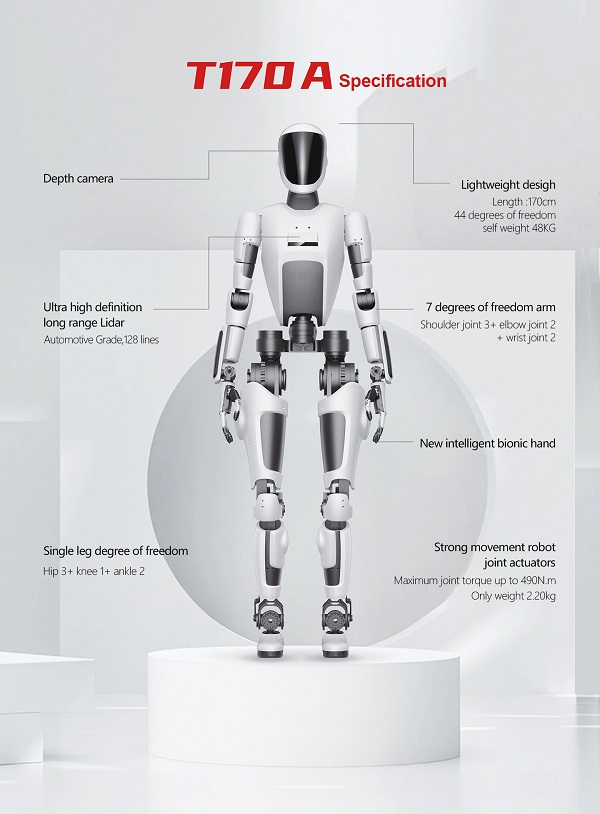

  Features

1. Depth vision camera
2. Ultra high definition long range Lidar-Automotive Grade,128 lines

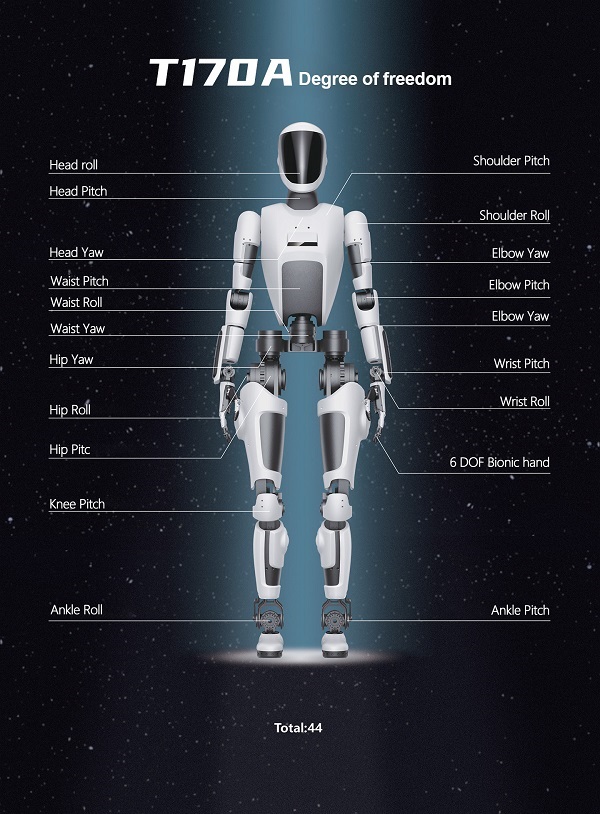

3. 7 degrees of freedom arm-Shoulder joint 3+ elbow joint 2+ wrist joint 2
4. Single leg degree of freedom-Hip 3+ knee 1+ ankle 2
5. New intelligent bionic hand-There are 6 execution units inside

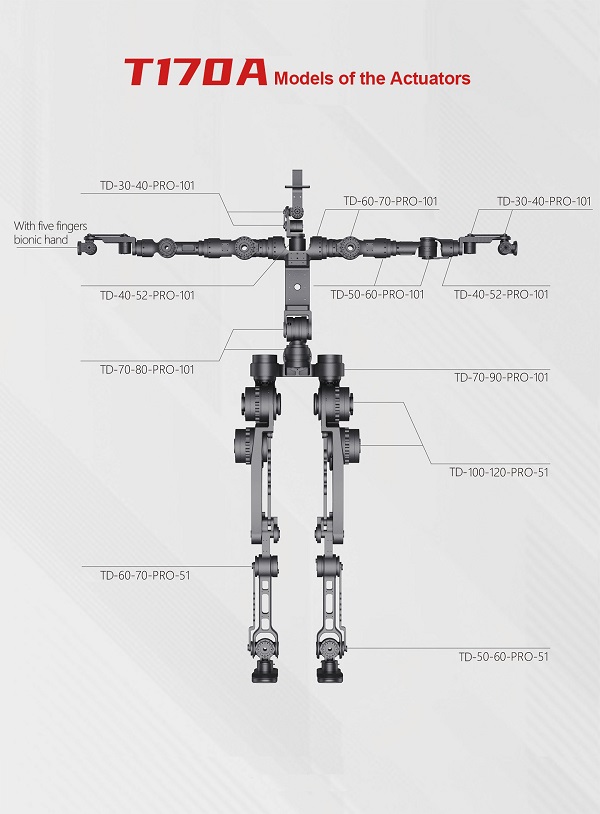

6. Strong motor joint-Maximum joint torque up to 490N.m, only 2.20kg

The new humanoid robot integrates servo control, motor drive, force sensing, precision transmission and efficient thermal management technology, highly integrated and lightweight characteristics, so that it can not only output high explosive force, but also ensure extremely high operating accuracy, and even achieve complex operations such as single-leg jumping.

The T170A's hip has a peak torque of 490Nm, and the new generation joint architecture has a peak torque density of 222Nm/kg. Under the overall outer diameter of 120mm, the diameter of the hollow hole is 31.5mm, which sets a new industry record and meets the needs of humanoid robots for power cables, network cables and other cables.
