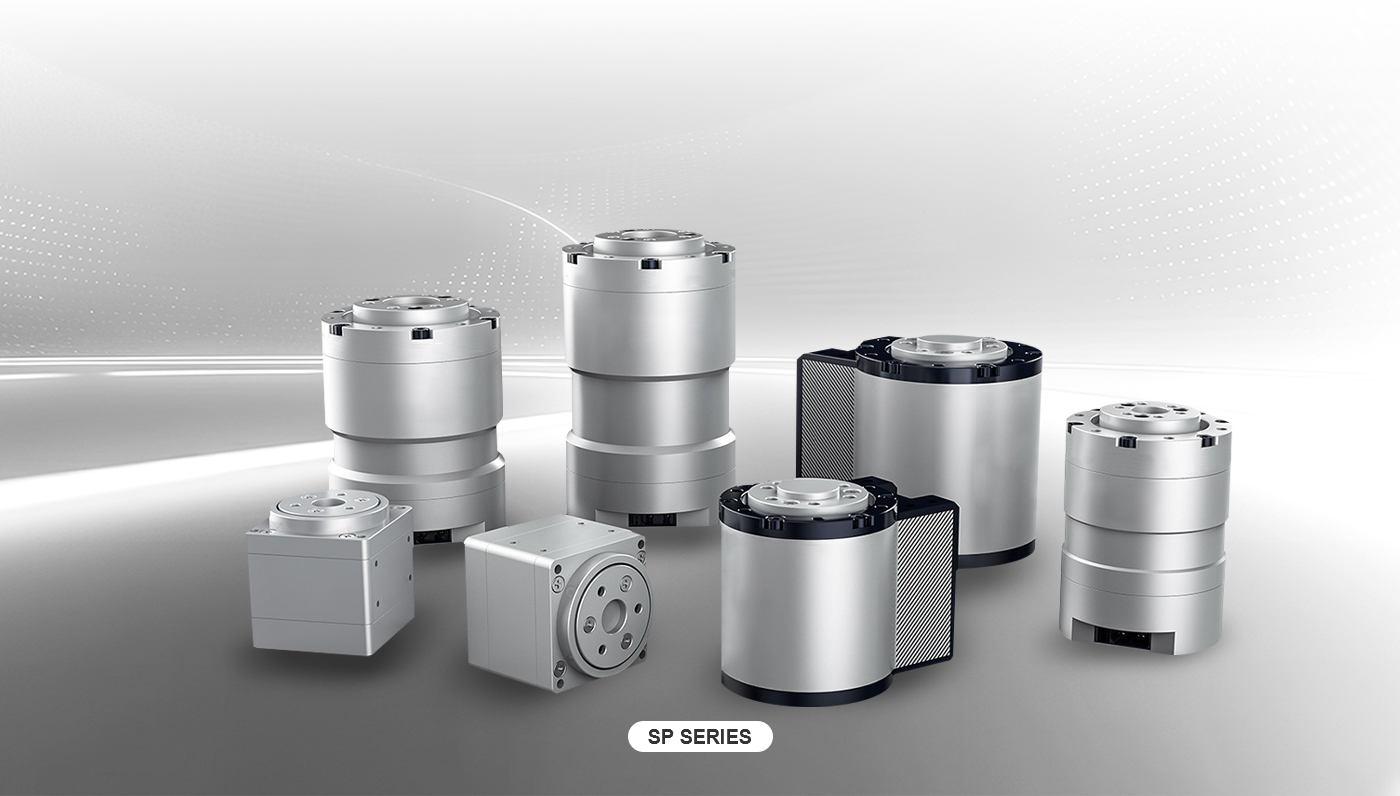

SP(Servo-Planetary) series planetary robot joint actuators

SP(Servo-Planetary) series planetary robot joint module is an integrated Servo joint actuators developed and produced by Avatar Robotics. SP planetary robot joint module is a highly integrated micro-servo joint with precision planetary reducer, torque motor and professional servo drive, which forming a drive control integration. The planetary joints are connected in series through the CAN bus, the wiring is simple and easy to operate, and the failure rate of the whole robot joints is low; The planetary has small size and large torque, especially suitable for bionic robot, bionic animal, educational robot arm and other multi-joint combination application scenarios; At the same time, the integrated planetary Servo joint actuators can replace a variety of brushless motors and large torque steering gear because of its high cost performance and stable performance

CAN 2.0 Protocol

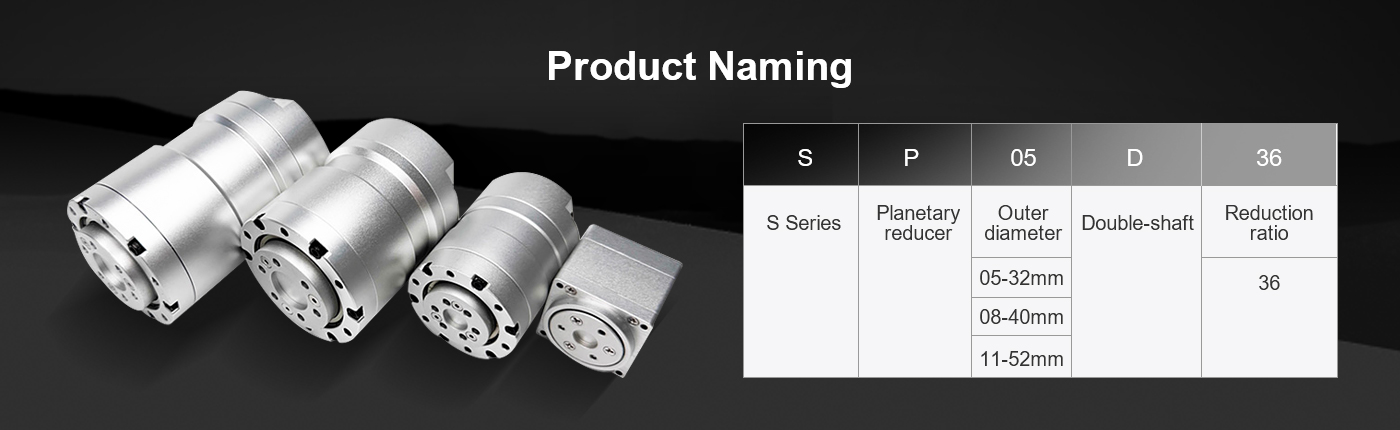

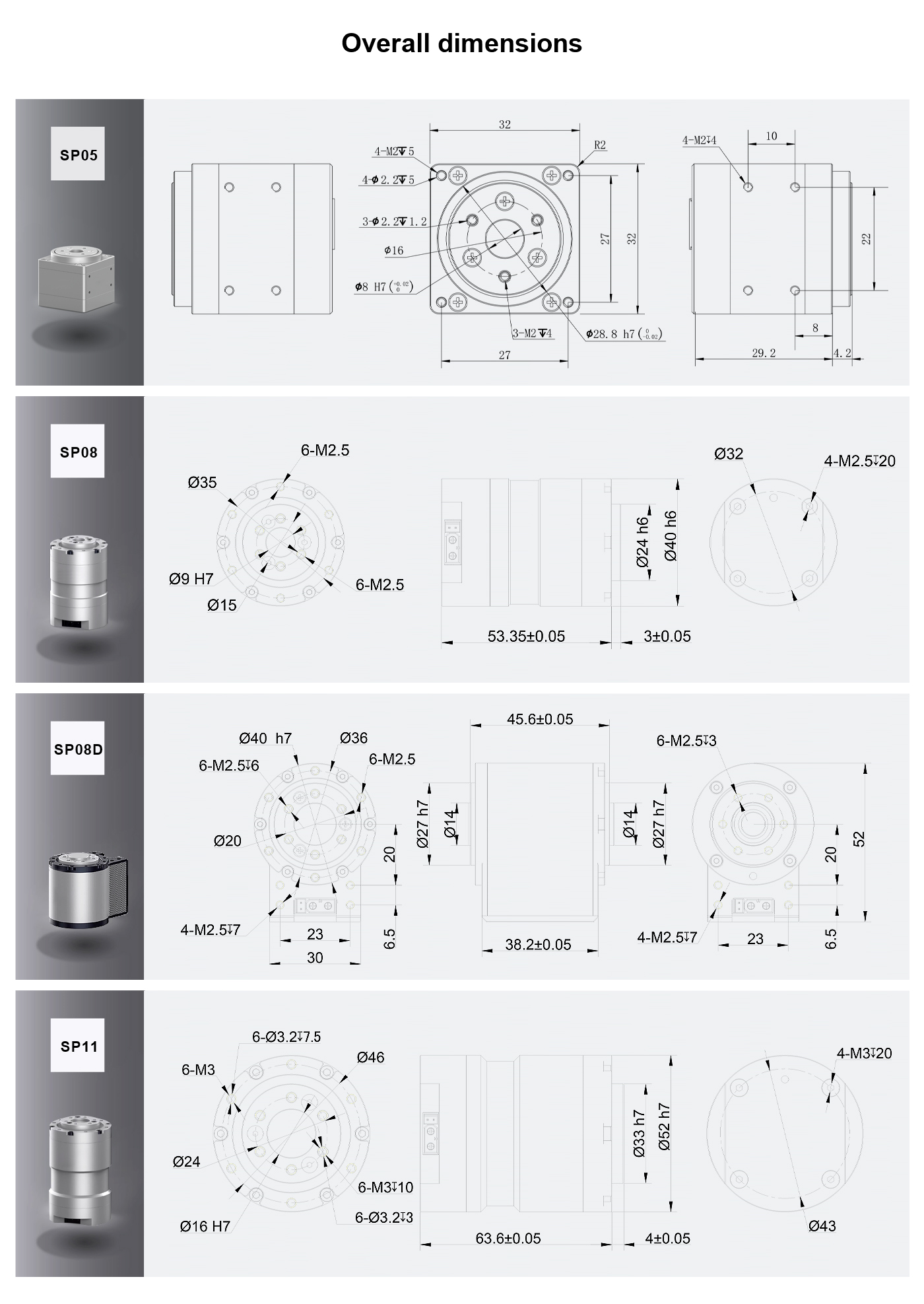

OD 32～52mm MINI PLANETARY INTEGRATED SERVO ACTUATORS

1.0~144Nm rated torque
24V DC voltage
35~72W Power

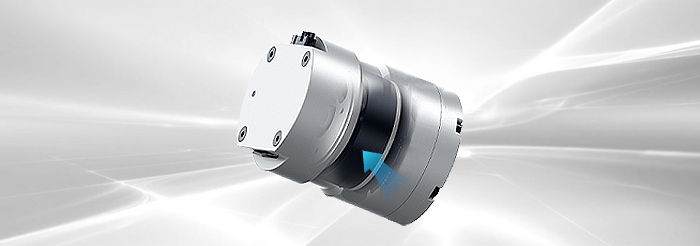

SP series planetary robot joint actuators are extremely lightweight and compact size.The smallest one is only 180g, the planetary joint motors greatly reduce the operation energy consumption.

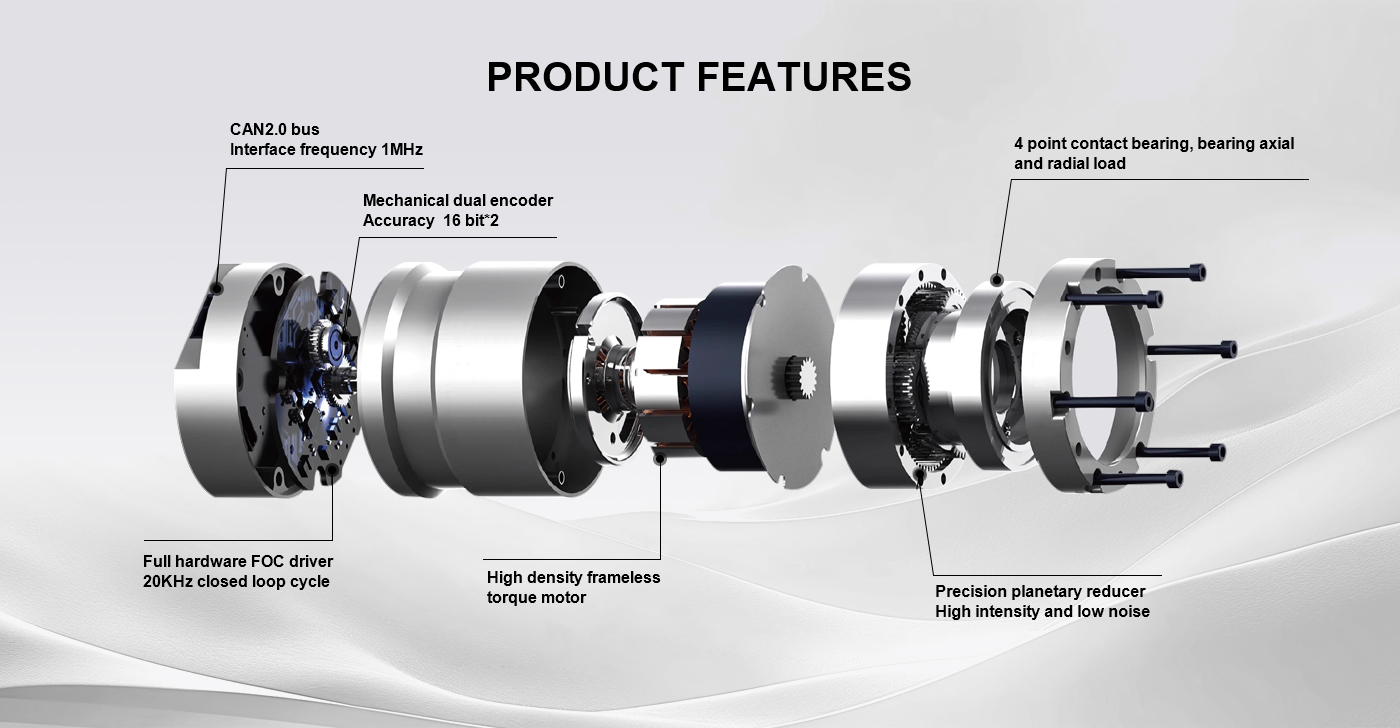

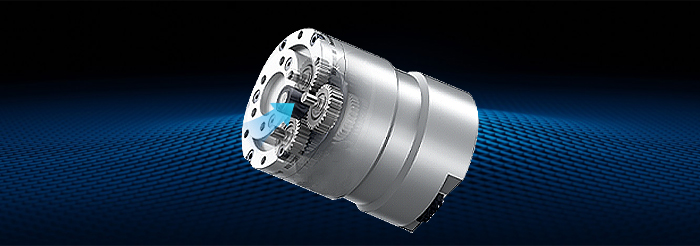

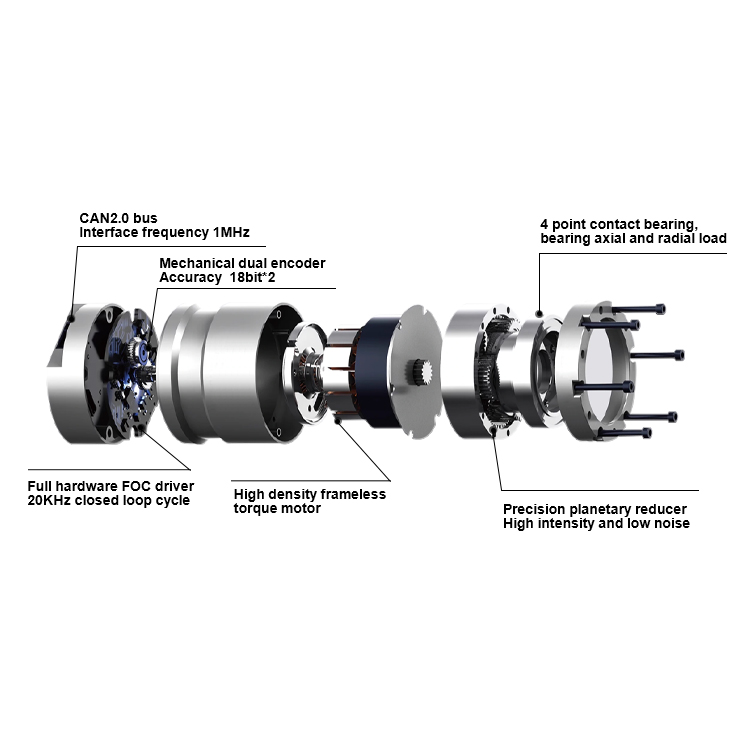

High precision metal planetary reducer
-Metal gear, withstand large torque and high precision,
-Backlash difference better than +-12arcmin(0.2 degrees)
-Low noise, high speed <70db
-Low speed and silent
-Output double bearing structure, no axial backlash


High density torque motor
-High density brushless external rotor torque motor
-Low slot torque
-Ultra-long life, normal working time exceeds 5000 hours

Double absolute encoder
-Double absolute encoder 16bit*2
-Single turn absolute encoder in the output end
- Power failure angle is not lost, no external battery is required

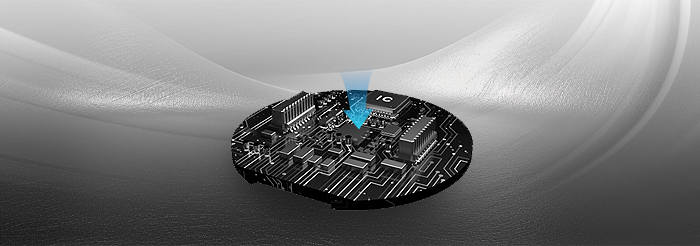

Integrated drive, bus control
Driven by FPGA design, stable performance, strong anti-interference
CAN2.0A bus interface, bus rate 1.0MHZ
Supports 254 joints or I/O devices in series
Simple connection, two serial bus one in and one out

Complete parameter setting
-Integrated algorithm, internal integrated track profile working mode,
 acceleration and deceleration, speed limit, torque limit, temperature limit can be set
- Current ring frequency 20khz, speed ring 10kHz, position ring 1kHz, the three ring parameters are all open, and various working modes are freely realized.

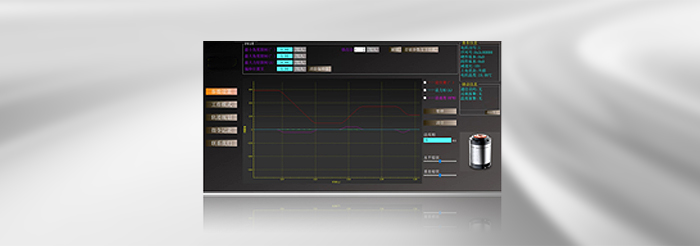

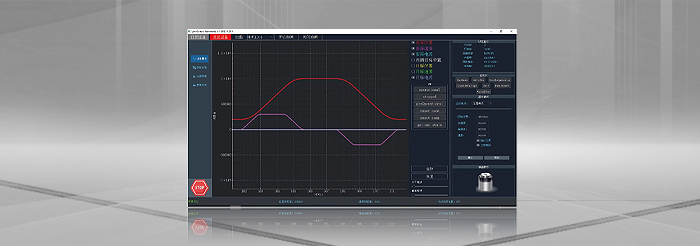

UBUNTU and WINDOWS upper computer
-Provide UBUNTU and WINDOWS versions of the host computer, easy for users to quickly verify.
-At the same time, C/C++ API can be integrated with LINUX-(ROS)\WINDOWS system to achieve rapid mass production of products

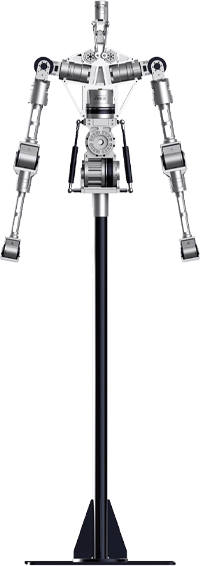

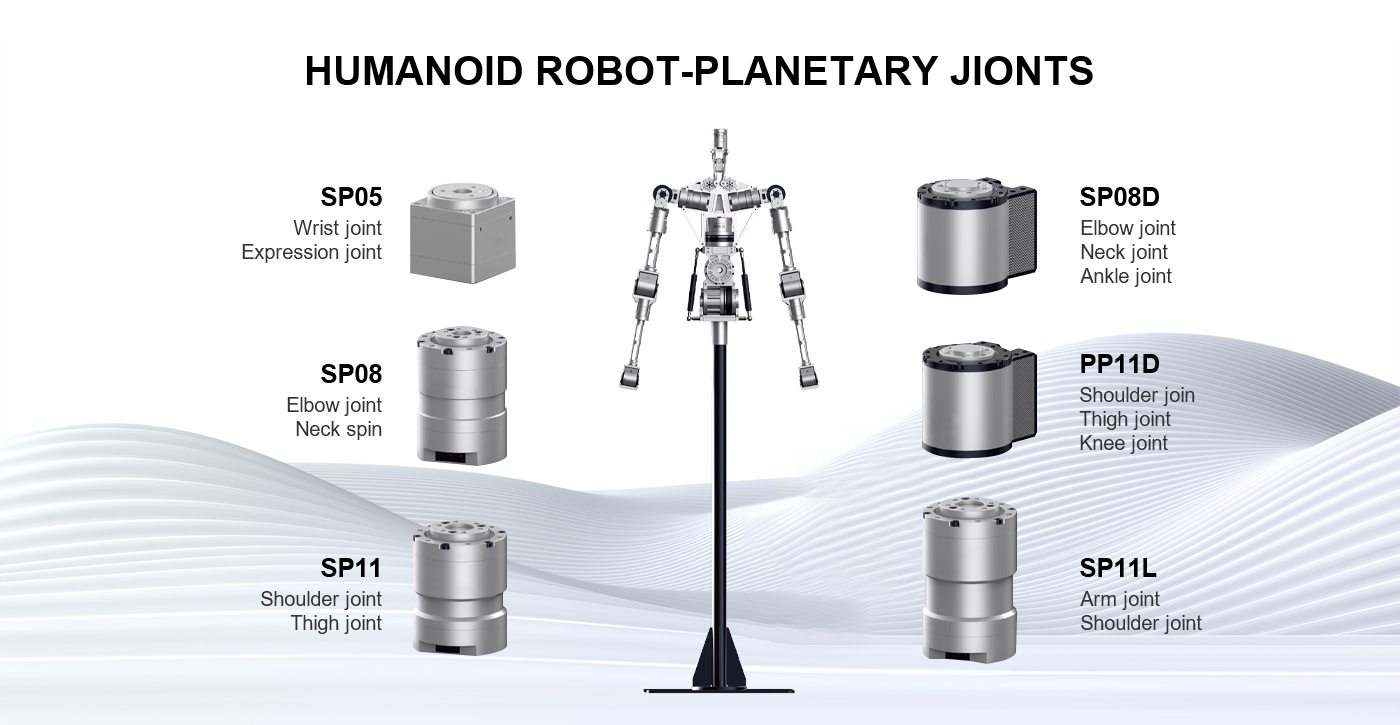

HUMANOID ROBOT-PLANETARY JIONTS

SP05

Wrist joint
Expression joint

SP08

Elbow joint
Neck spin

SP11

Shoulder joint
Thigh joint

SP08D

Elbow joint
Neck joint
Ankle joint

SP11D

Shoulder joint
Thigh joint
Knee joint

SP11L

Arm joint
Shoulder joint

Collaborative Manipulator

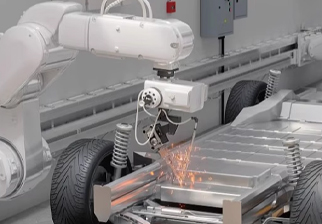

Smart manufacturing

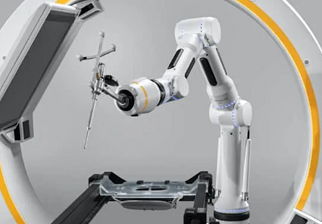

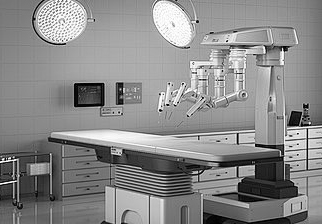

Medical Equipment

Exoskeleton

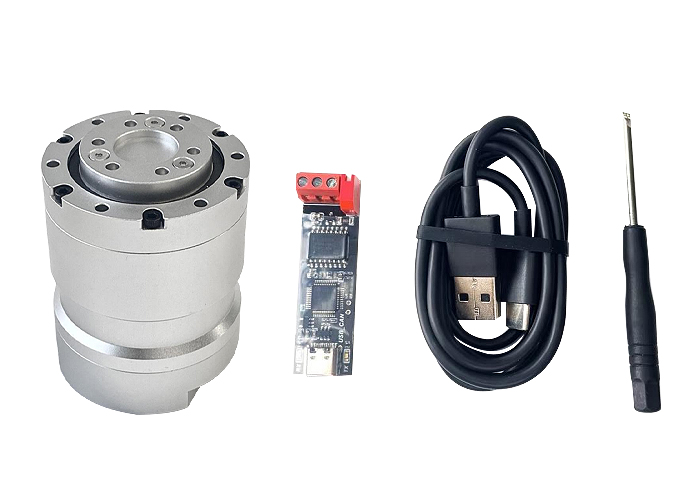

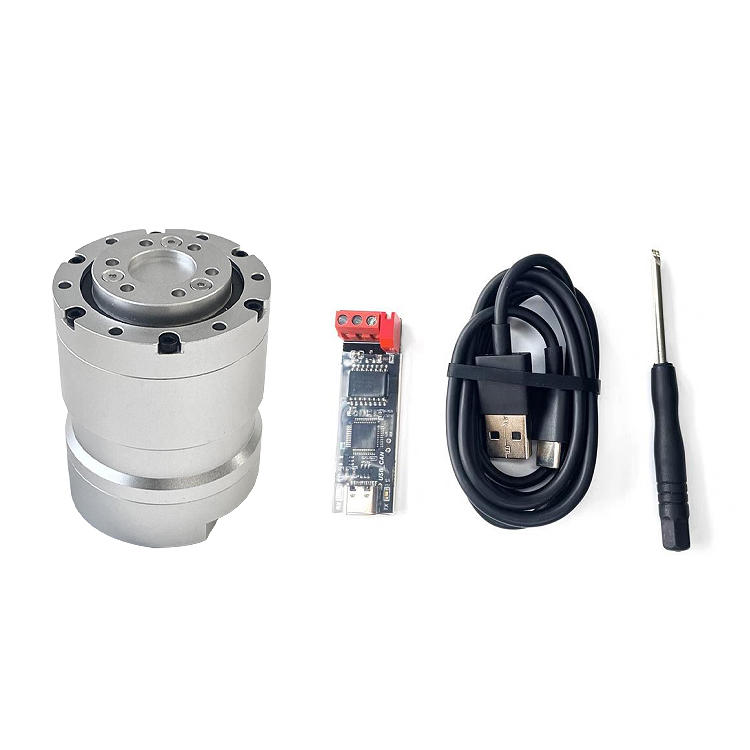

The upper computer is connected to the joint, and the USB to CAN module needs CAN-able to connect.

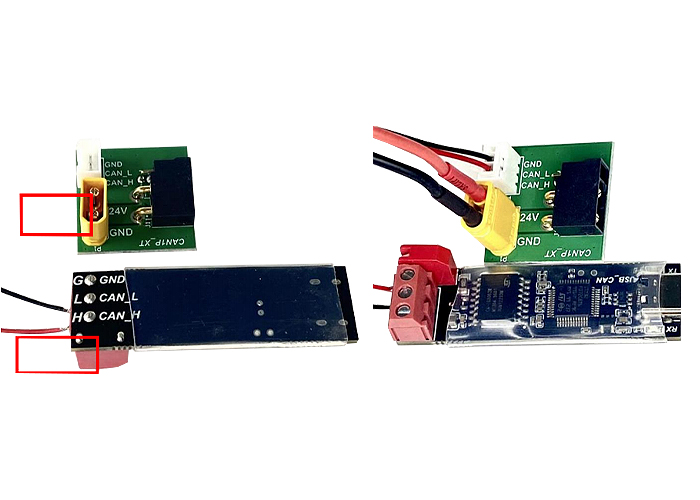

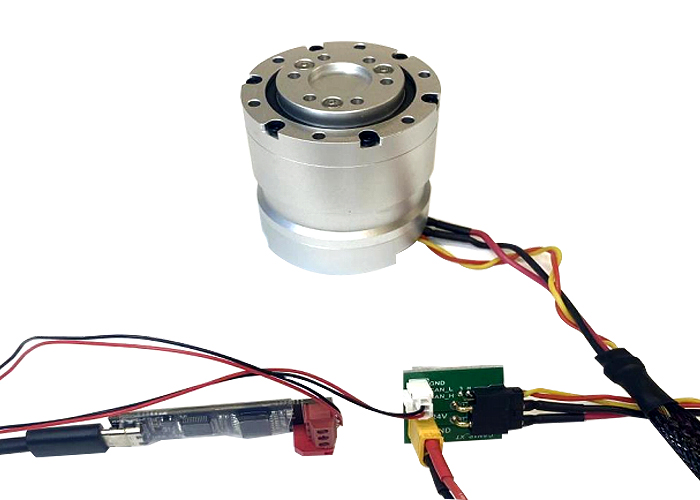

Connect cables to the CAN debugger. Connect L to CAN_L, H to CAN_H, G not connect, and R dip switch 1,Dial to ON, and then connect the debugger to the joint.

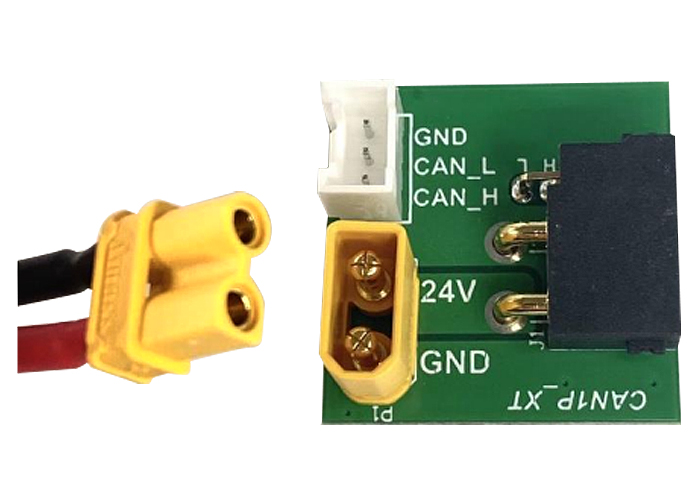

24V power supply port, plug-in terminal model: XT30UPB-M, distribution terminal model:XT30U-F; 24V connects to the positive terminal of the power supply, GND connects to the negative terminal of the power supply

Communication connection between joint module and upper computer: connect with UCB_CAN connection board, connect USB turn CAN device (Canable_CandleLight) to the USB port of the computer, connect the integrated motor joint to USB ,turn CAN device on and power on.
