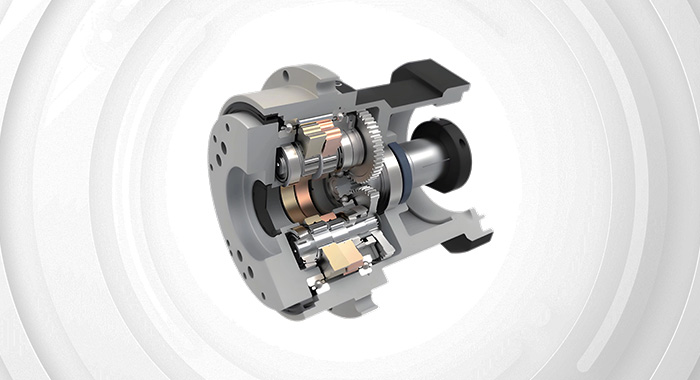

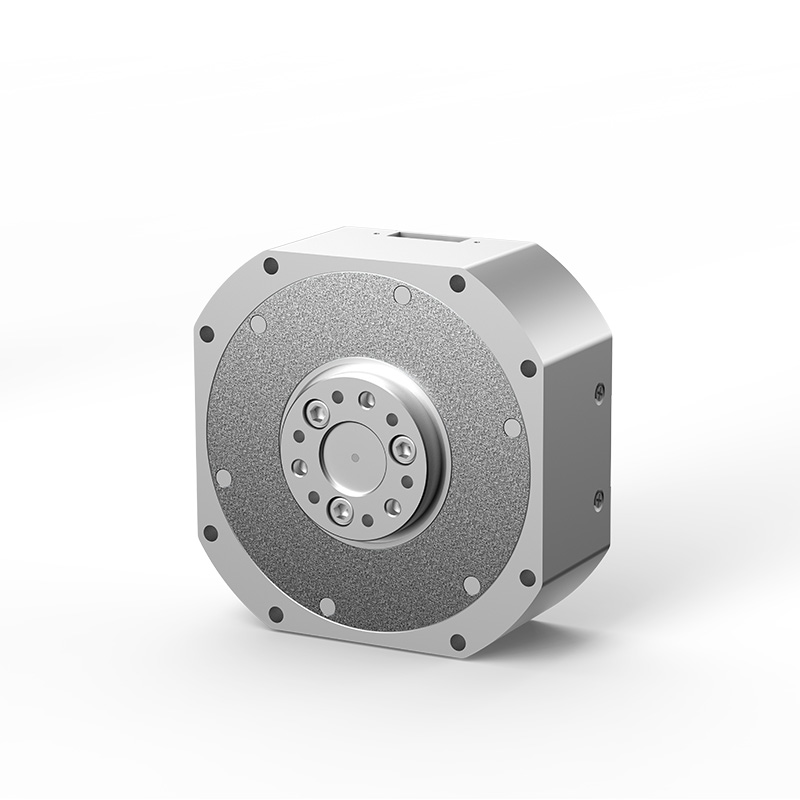

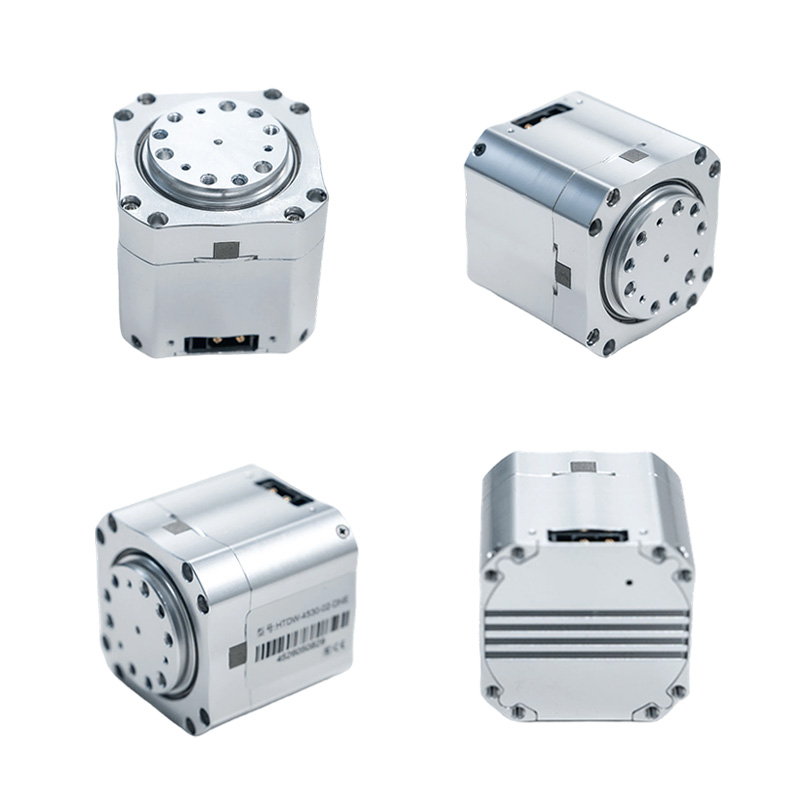

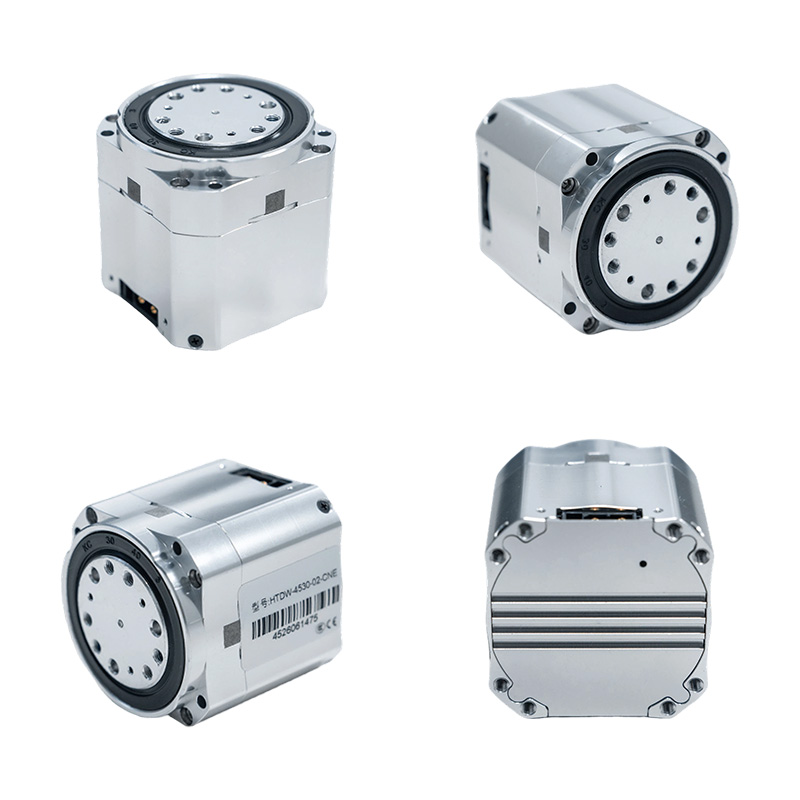

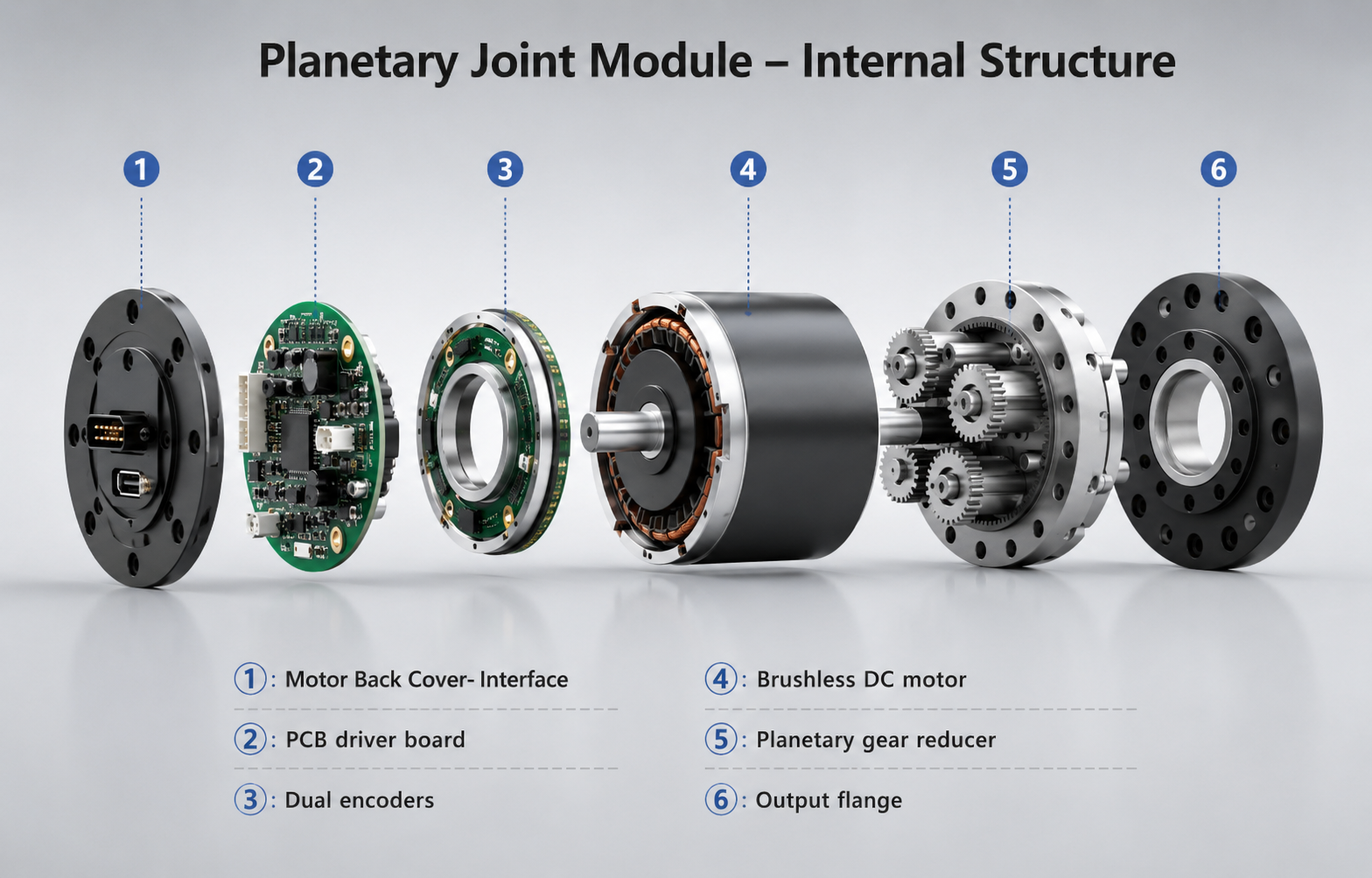

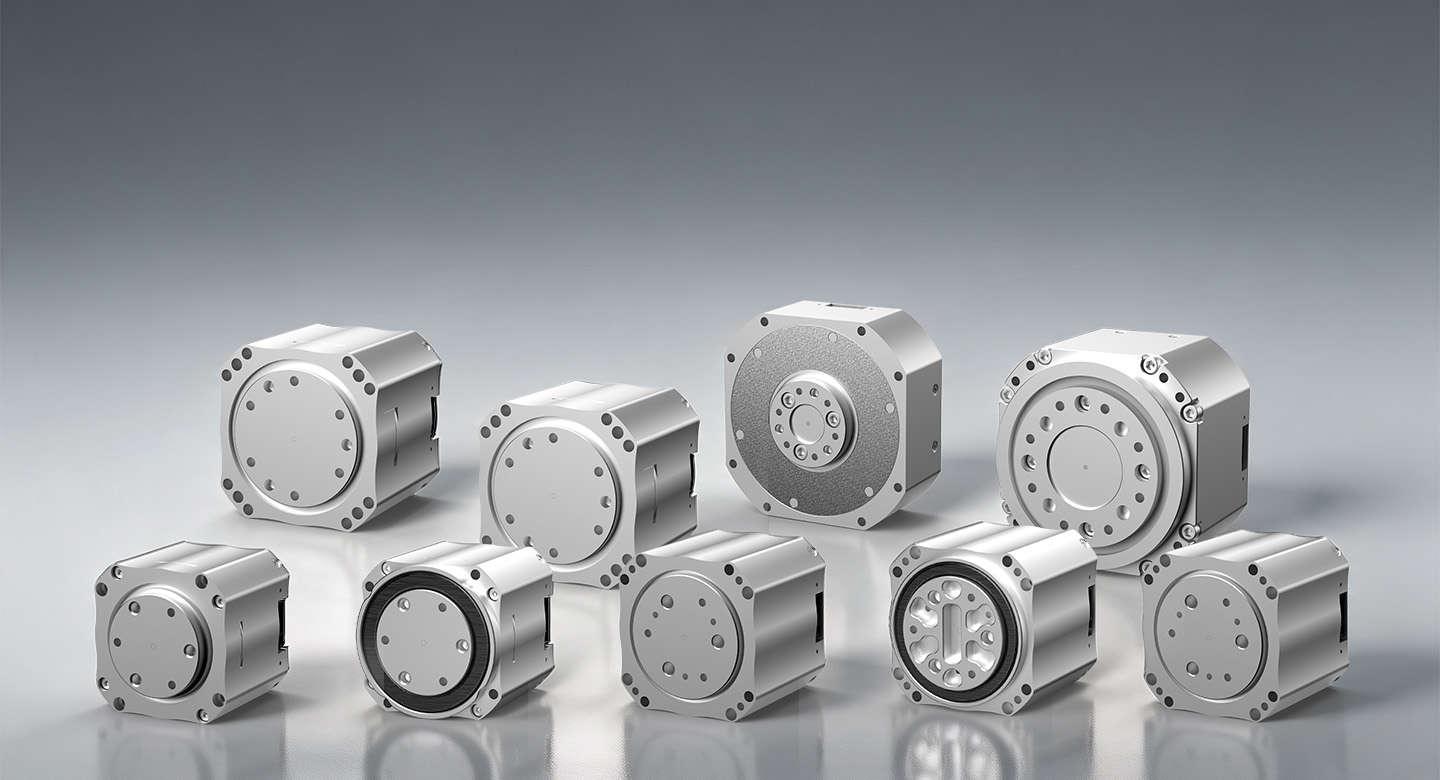

The DW & PW Series Planetary Joint Module combines an optimized planetary gearbox with a proprietary brushless DC motor. Featuring low backlash, low cogging torque, reduced torque ripple, and dual absolute encoders.
Rated torque: 2~18Nm
Peak torque：10~60Nm
Rated speed: 10~250rpm
Communication protocol: CAN/CANFD

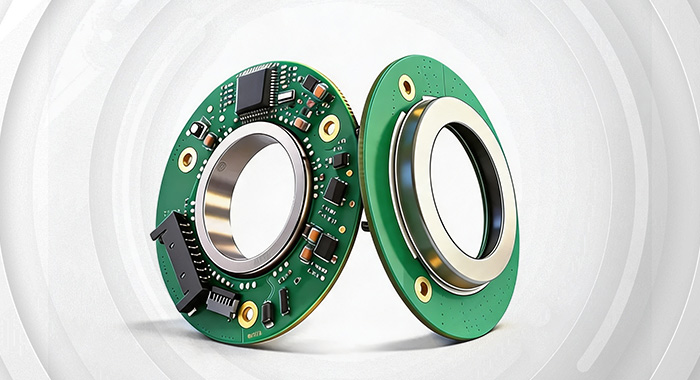

14 bit resolution enables precise position detection.
Dual encoders provide independent feedback from the motor and output sides.
Real-time feedback improves positioning, speed, and torque control.
Dual feedback helps detect position errors and improves system stability.
..
Minimizes positioning errors for accurate motion.
Delivers faster and more precise movement.
Reduces vibration and improves motion stability.
Ideal for robots and automation requiring precise motion.
.
Saves valuable installation space.
Delivers high torque in a small package.
Provides efficient and responsive power output.
Ideal for compact robots and space-limited applications.
Handles demanding loads with ease.
Enables fast and responsive movement.
Combines speed and torque for dynamic applications.
Ideal for robots, automation, and high-performance machinery.
Applications

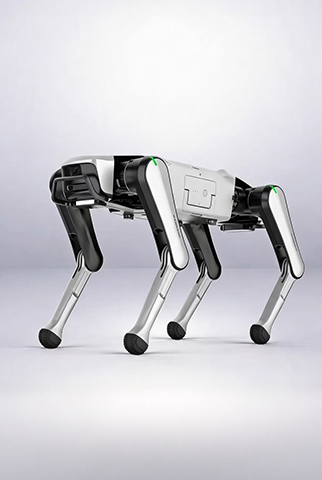

Quadruped robot

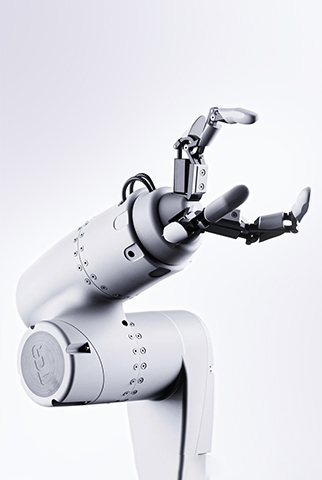

Robot Arm
Service Mobile robot
Automated transmission equipment

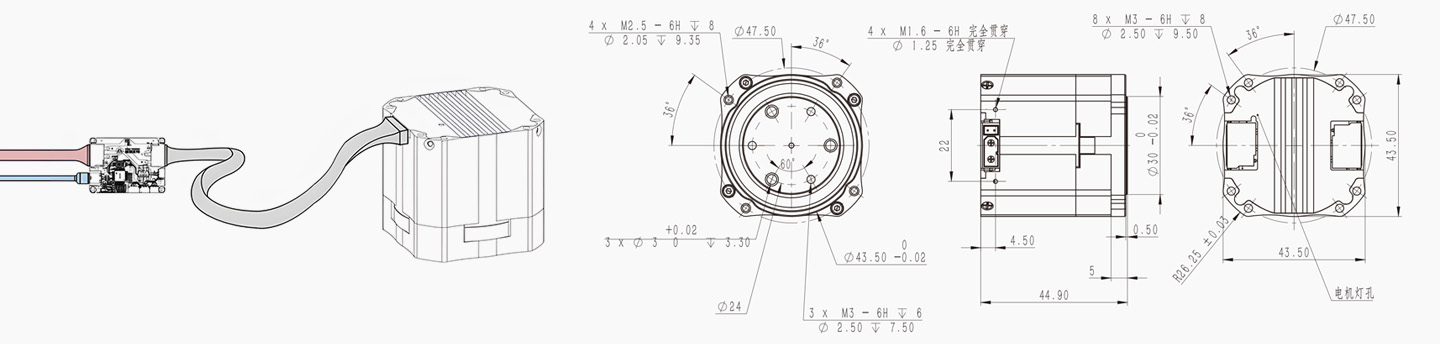

| Model | DW-4438-30-NE-JC | DW-4438-30-NE | DW-5022-02-DNE | DW-5036-02-DNE | DW-5036-02-CNE |
| Length(mm) | 44 | 44 | 50 | 50 | 50 |
| Wide(mm) | 44.9 | 43.4 | 47.4 | 47.4 | 47.4 |
| Weight(g) | 237 | 237 | 322 | 323 | 345 |
| Ratio | 30 | 30 | 20 | 36 | 36 |
| Rated Torque（Nm） | 2 | 2 | 3.5 | 6 | 6 |
| Stall torque（Nm） | 10 | 10 | 13 | 21 | 21 |
| Rated output power（W） | 8.5 | 8.5 | 30 | 30 | 30 |
| Rated speed(rpm) | 40 | 40 | 82 | 50 | 50 |
| No-load speed(rpm) | 160 | 160 | 123 | 75 | 75 |
| Communication | CAN、CANFD | CAN、CANFD | CAN、CANFD | CAN、CANFD | CAN、CANFD |
| Encoder Resoluton (Bit) | 14+14bit | 14+14bit | 14+14bit | 14+14bit | 14+14bit |
| Votalge | 24V | 24V | 24V | 24V | 24V |
| Model | DW-6036-02-DNE | DW-6036-02-CNE | DW-7535-02-CNE | PW-7507-02-DNE |
| Length(mm) | 60 | 60 | 75 | 75 |
| Wide(mm) | 56 | 56 | 56 | 35 |
| Weight(g) | 565 | 570 | 850 | 390 |
| Ratio | 36 | 36 | 35 | 7 |
| Rated Torque（Nm） | 10 | 10 | 18 | 4 |
| Stall torque（Nm） | 36 | 36 | 60 | 12 |
| Rated output power（W） | 52 | 52 | 94 | 92 |
| Rated speed(rpm) | 50 | 50 | 50 | 250 |
| No-load speed(rpm) | 60 | 60 | 60 | 270 |
| Communication | CAN、CANFD | CAN、CANFD | CAN、CANFD | CAN、CANFD |
| Encoder Resoluton (Bit) | 14+14bit | 14+14bit | 14+14bit | 14+14bit |
| Votalge | 24V | 24V | 24V | 24V |
